Description

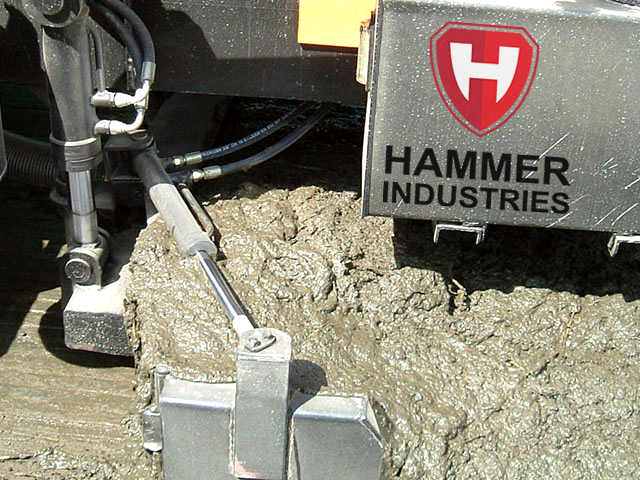

The Manure Scrapper arms can be easily adjusted to accommodate alleys of different widths and constructions. The scraped manure/sludge is sucked into an MS tank. Once filled this tank can be towed to the dumping site and emptied through a slurry valve. The tank can be hydraulically tilted to an angle of 45 degrees which ensures complete manure/sludge discharge. The rear dish end too can be opened for periodic cleaning of the tank. After use, the unit can be easily detached from the tractor leaving it free for other applications. The rubber walls clean the manure edge to edge in one pass.
Manure Scrapper Main Features
- Reduce Time: Cleans the alley in one pass. It scrapes and sucks the manure at the same time.
- Rugged Durability: Manufactured from the highest quality of materials and components. All Hydraulic components are of European Origin.
- Cost Efficiency: As the unit is towed and powered by any farm tractor PTO, therefore, it eliminates the need for an expensive prime mover. Once the manure scrapper’s application is completed the tractor is available for other farm applications.
- Remote Manure Processing: The Manure Scrapper unit allows the transport of manure easily and reliably to anywhere on the dairy farms.
- Instant Suction: The powerful vacuum pump allows the operator to have instant suction at the scraper head without waiting to build vacuum pressure in the tank.
- Proven Reliability: The Italian Vacuum pump has a proven track record in many demanding industries such as oil fields, hydro excavation, farms, sewer cleaning trucks, and milking parlors.
- Quick Unloading: The manure tank has a 45 Degree Hydraulic Tipping and full rear dish end opening mechanism, therefore, allowing quick discharge/unloading. Precise unloading and manure spreading functionality can be achieved through positive pressure from the Vacuum Pump.
Technical Specifications of Manure Scrapper |
|
| Tank Capacity | 3500 ~ 10,000 liters |
| Operating Weight Empty | 1.5 ~ 4 ton |
| Operating Weight Loaded | 4.5~ 15 ton |
| Scraping Width | 6 to 8ft |
| Engine | 45 HP or higher |
| Hydraulic Fluid Capacity | 50 liters |
| Transmission | Tractor PTO Shaft |
| Working Speed | 3 Km/hr. |
| Transportation Speed | Up to 20 Km/hr. |
| Vacuum Blower Free Air Capacity | 12000 – 15000 liters/min |
| Auxiliary Suction | At the rear of a tank |
| Spreading Option | vailable |
