Description

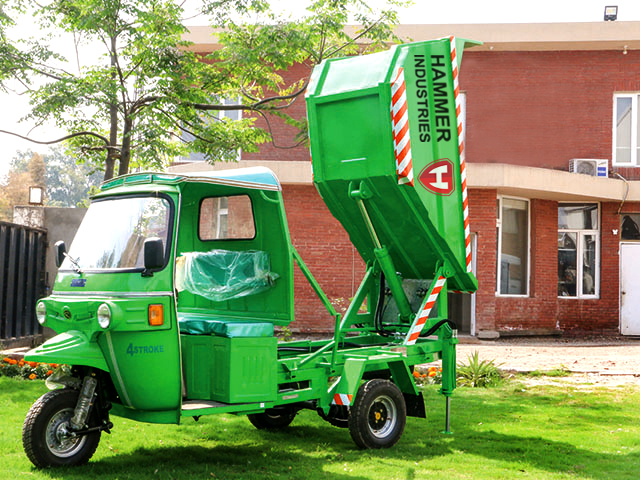

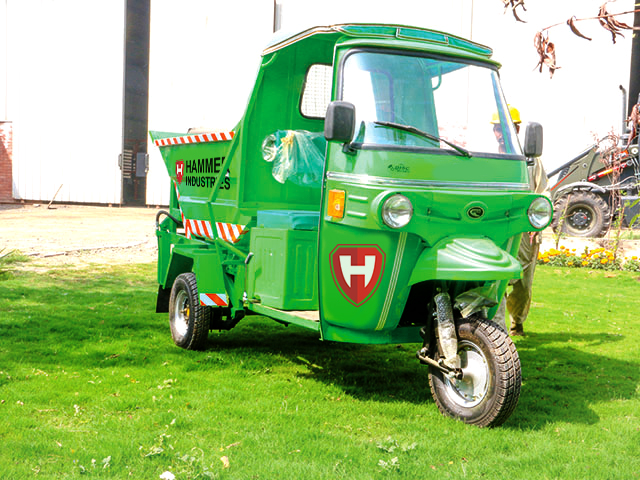

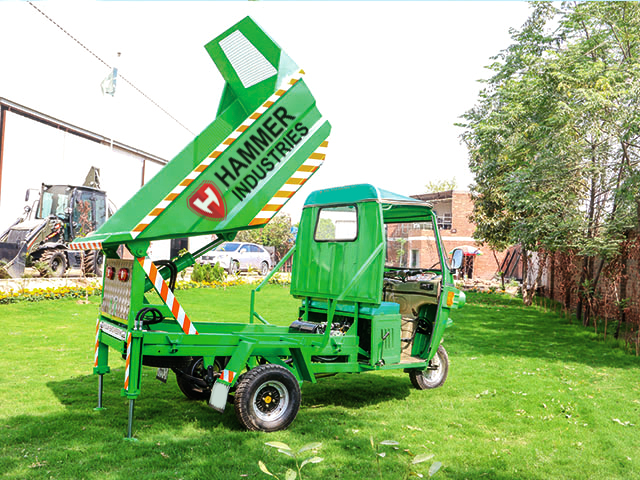

This Rickshaw Mini-Tipper can dump solid waste into trash compaction vehicles (satellite unloading), or the nearest Dumping site. The hydraulic system consists of one hydraulic cylinder for tipping/dumping and two hydraulic cylinders for stabilizing the vehicle. This integrated stabilizer system ensures that there is no load on the chassis during tipping. Furthermore, a tipping angle of 85° ensures complete emptying of the container every time. Rickshaw Mini-Tipper has been conceived and built with high-quality industrial components to guarantee reliability. This is ensured by the fact that all critical components are CE certified. Simple push-button controls combined with a simplified hydraulic circuit make this dumper highly user-friendly, with assured after-sale service and parts availability
Specifications of Rickshaw Mini-Tipper:
| Container Volume | 0.8m3 ~ 1m3 |
| Max Loading Capacity | 300 ~ 400 Kg |
| Operating Pressure | 160 bars |
| Dumper Hydraulic System | 3 hydraulic cylinders made from imported hard chromed rods and honed tubes. Powered by a 12 V DC Hydraulic Power Pack |
| Tipping Angle | Maximum 85° |
| Container Sheet Gauge | 2.0 mm |
| Protective Coatings | Zinc-based epoxy paints for maximum rust protection. |
